32-Element CRPA Antenna for GNSS Anti-Jamming & Anti-Spoofing
The flagship: 31 jammers suppressed plus full spoofing rejection
- Array elements
- 32
- Max jammers
- 31
- Weight
- ≤8000 g

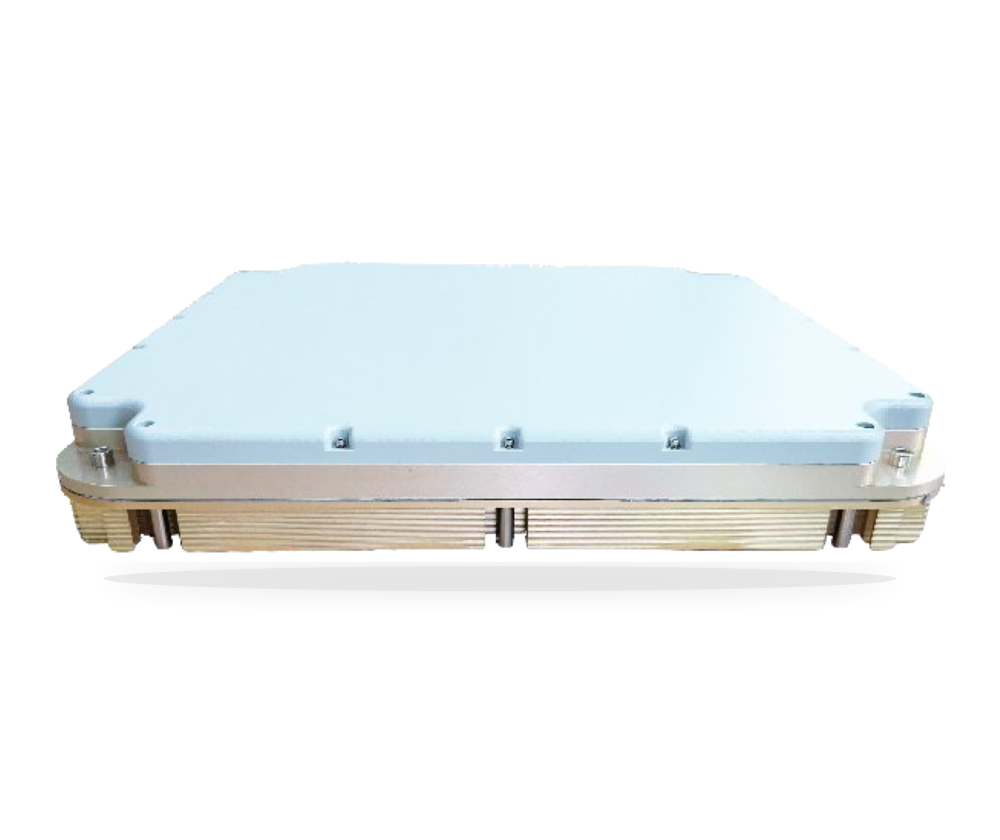

The TX2609-AJS-32CH-DPA is a GNSS anti-jamming terminal for industrial users. It suppresses interference on BDS-B1i, GPS-L1 and Galileo-E1 — narrowband, wideband, pulse, swept and Gaussian noise jamming, up to 31 jammers at once — and rejects asynchronous, synchronous and repeater spoofing before the signal reaches the receiver. The 32-element antenna array, anti-jamming components and GNSS receiver are integrated in one housing. Built for UAVs, unmanned ground vehicles and vessels, and for timing in power, communications and finance networks, it protects the user terminal from unintentional interference and malicious attacks and substantially raises PNT information security.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | 390 × 390 × 54 mm |
|---|---|
| Power | ≤70 W |
| Weight | ≤8000 g |
| Frequencies | 1561.098 MHz · 1575.42 MHz |
| Constellations | BDS-B1i · GPS-L1 · GALILEO-E1 |
| RF output | -70 to -60 dBm · 50 Ω |
| Anti-spoofing | Enhanced — residual spoofing signal C/N₀ at output ≤20 dB |
The plot below is locked to this model's array. Drag a jammer to see where the nulls form and which satellites stay locked.
- Nulls / capacity
- —
- Satellites held
- —
