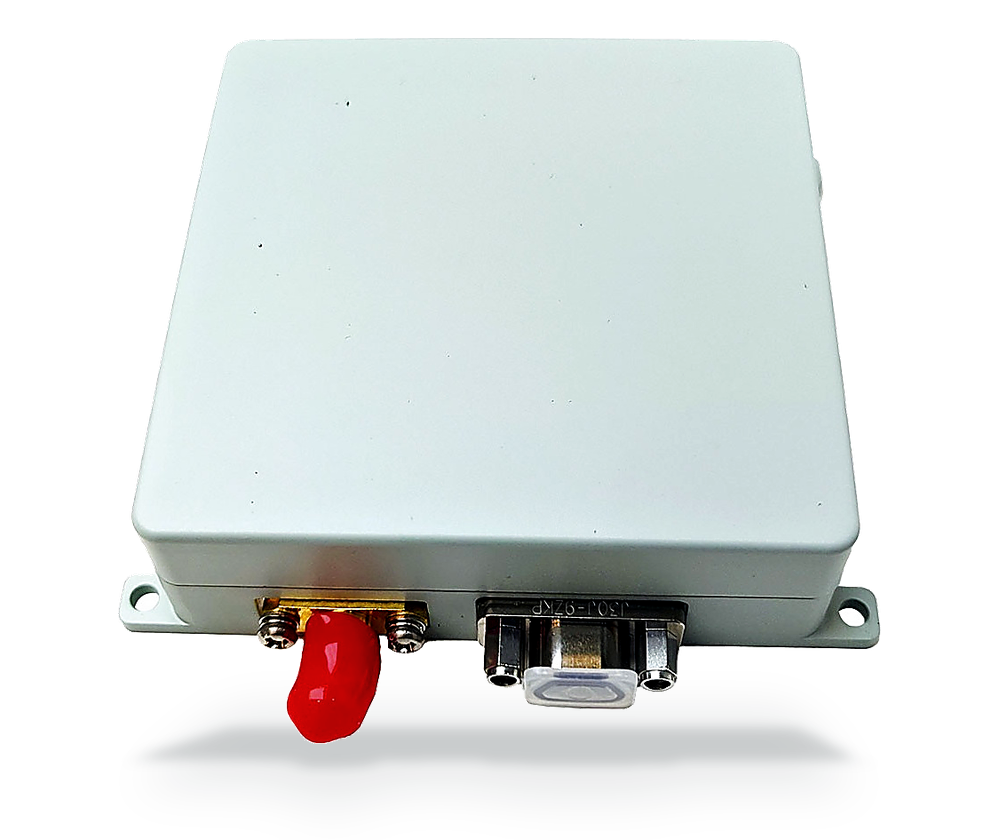

4-Element CRPA Antenna for GNSS Anti-Jamming
65 mm aperture — the smallest CRPA terminal in the range, for small and medium UAVs
- Array elements
- 4
- Max jammers
- 3
- Weight
- ≤130 g
The TX-S65-4CH-SNB is an ultra-compact integrated anti-jamming antenna terminal with a 65 mm aperture. It integrates the antenna array, anti-jamming module and GNSS receiver in a single housing, delivering wideband jamming suppression and positioning on the B1/L1 bands, with Galileo E1 alongside GPS L1. Designed for industries that need a small, light and low-cost solution, such as small and medium unmanned aerial vehicles.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | 65 × 65 × 21 mm |
|---|---|
| Power | ≤6 W |
| Weight | ≤130 g |
| Frequencies | 1575.42 MHz · 1561.098 MHz |
| Constellations | BDS-B1 · GPS-L1 · GALILEO-E1 |
| RF output | -75 to -85 dBm · 50 Ω |
TX-S65 CRPA antenna jamming test in the city
Field test of the TX-S65, a 4-element CRPA antenna (controlled reception pattern antenna) for small drones. With a GPS jammer about 10 m away in a dense city, the receiver keeps tracking BeiDou, GPS and Galileo satellites and the position holds from jammer on to jammer off: GPS anti-jamming you can see on screen.
The plot below is locked to this model's array. Drag a jammer to see where the nulls form and which satellites stay locked.
- Nulls / capacity
- —
- Satellites held
- —
Ask for pricing and lead time
Tell us the platform, the power budget and the interference you expect. We will confirm this model fits, or point you at the one that does. We respond within one business day.
