16-Element CRPA Anti-Jamming Antenna
Up to 15 jammers suppressed per frequency, with a built-in receiver
- Array elements
- 16
- Max jammers
- 15
- Weight
- ≤1250 g

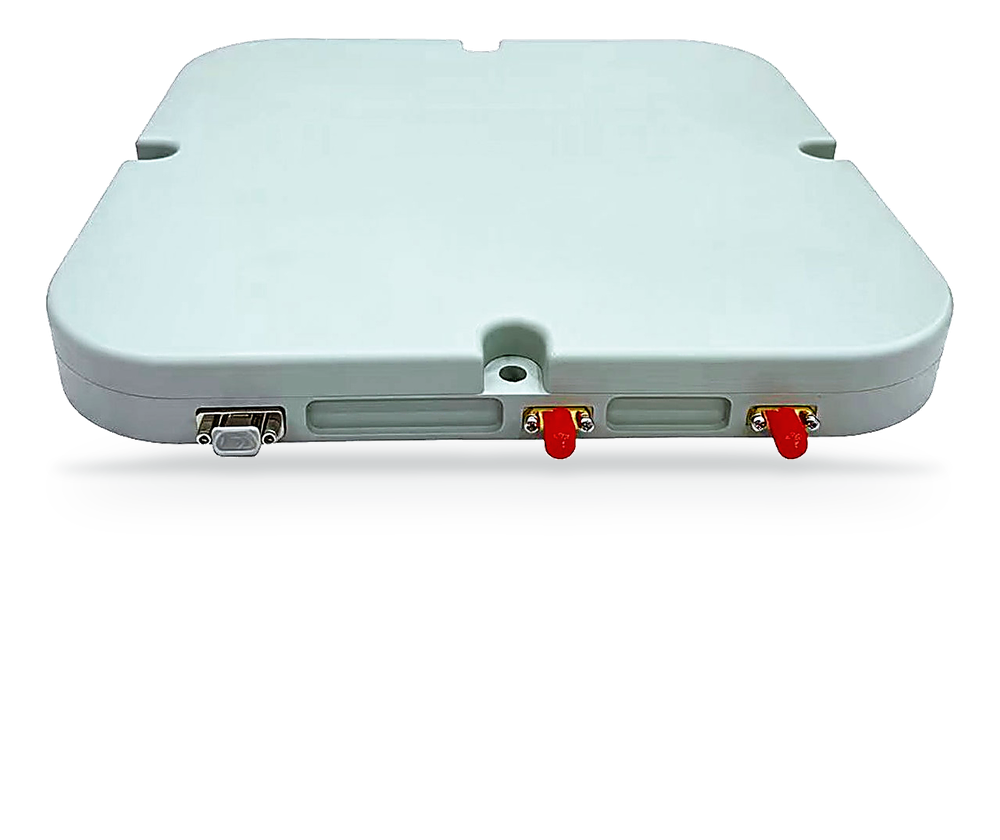

The TX2511-16A-SNB is a GNSS anti-jamming terminal for professional and industry users. It supports jamming suppression for GPS-L1, GAL-E1 and BDS-B1 signals, protecting against a maximum of 15 jammers on each frequency. The antenna is equipped with a built-in receiver and is distinguished by a high degree of integration, high performance and high accuracy.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | 230 × 230 × 24 mm |
|---|---|
| Power | ≤25 W |
| Weight | ≤1250 g |
| Frequencies | 1561.098 MHz · 1575.42 MHz |
| Constellations | GPS-L1 · GALILEO-E1 · BDS-B1 |
| RF output | -70 to -60 dBm · 50 Ω |
The plot below is locked to this model's array. Drag a jammer to see where the nulls form and which satellites stay locked.
- Nulls / capacity
- —
- Satellites held
- —
