4-Element CRPA Antenna for GNSS Anti-Jamming
Triple-constellation BDS + GPS + GLONASS with simultaneous wideband suppression
- Array elements
- 4
- Max jammers
- 3
- Weight
- ≤400 g

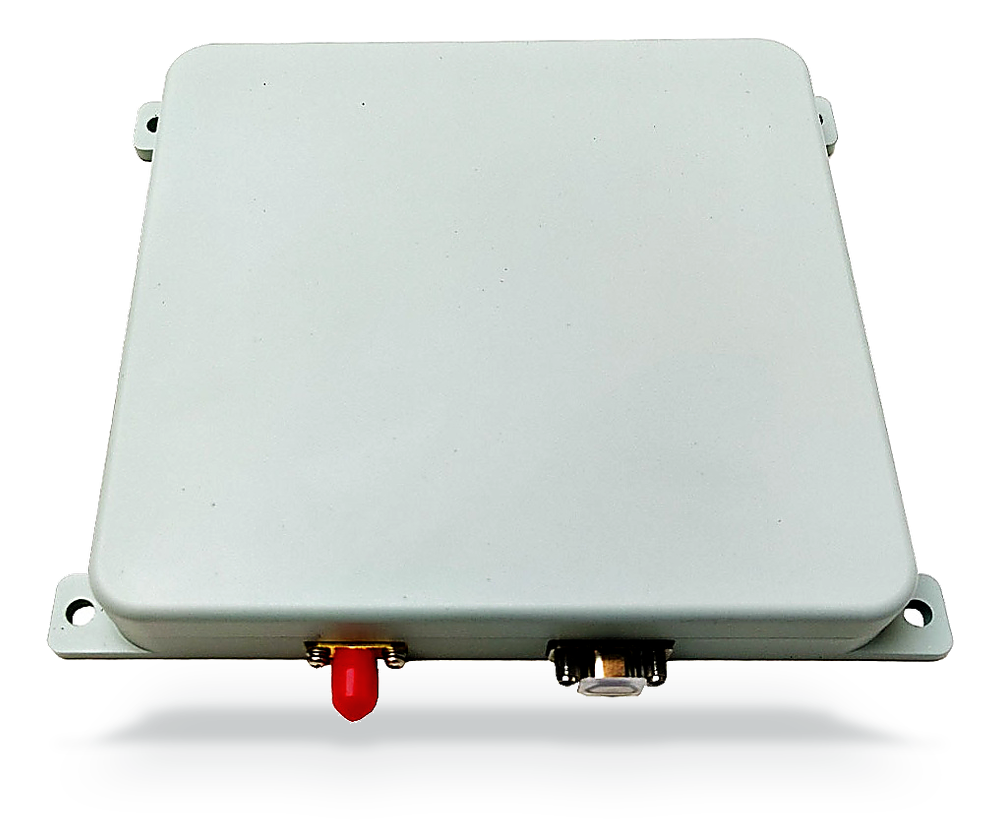

The TX-009Pro-8CH-G1-WG-DT is a compact integrated GNSS anti-jamming terminal for civil UAV and professional users. It receives tri-band BDS-B1, GPS-L1 and GLONASS-G1 signals, suppresses wideband interference across all three constellations simultaneously and protects against up to 3 jammers. Integrated antenna array, anti-jamming module and GNSS receiver deliver reliable navigation for UAVs and unmanned ground vehicles.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | 150 × 130 × 21 mm |
|---|---|
| Power | ≤12 W |
| Weight | ≤400 g |
| Frequencies | 1561.098 MHz · 1575.42 MHz · 1602 MHz |
| Constellations | BDS-B1 · GPS-L1 · GLONASS-G1 · GALILEO-E1 |
| RF output | -70 to -60 dBm · 50 Ω |
TX-009Pro-G1 GNSS anti-jamming test, jammer at 5 m
The TX-009Pro-G1 is a three-band, eight-channel CRPA anti-jamming terminal. In this city field test the jammer stands just 5 m from the antenna. Signal levels dip, but the receiver keeps tracking satellites and the position fix holds throughout: GNSS anti-jamming at close range.
The plot below is locked to this model's array. Drag a jammer to see where the nulls form and which satellites stay locked.
- Nulls / capacity
- —
- Satellites held
- —
