4-Element CRPA Anti-Jamming Antenna
Second band chosen at order — BeiDou B3, GPS L2 or GPS L5 — alongside B1, L1 and Galileo E1
- Array elements
- 4
- Max jammers
- 3
- Weight
- ≤500 g

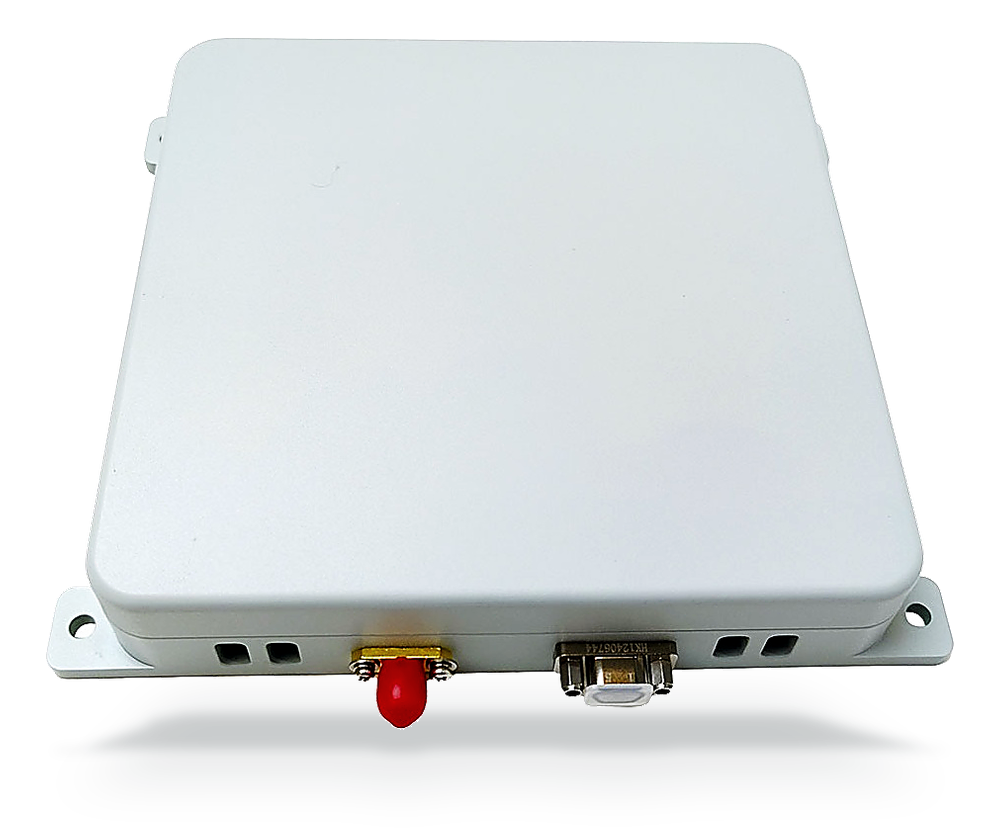

The TX-009Pro-8CH-BD-WG-DT is a compact integrated GNSS anti-jamming terminal for civil UAV and professional users. It receives BDS-B1, GPS-L1 and Galileo-E1, plus a second band selected at order time — BeiDou B3, GPS L2 or GPS L5 — so the terminal can be matched to the receiver already in the platform. It suppresses wideband interference across those bands and protects against up to 3 jammers, with the antenna array, anti-jamming module and GNSS receiver integrated in one housing.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | 150 × 130 × 26.5 mm |
|---|---|
| Power | ≤17 W |
| Weight | ≤500 g |
| Frequencies | 1575.42 MHz · 1561.098 MHz · 1268.52 / 1227.60 / 1176.45 MHz |
| Constellations | BDS-B1 · GPS-L1 · GALILEO-E1 · BDS-B3 / GPS-L2 / GPS-L5 |
| RF output | -70 to -60 dBm · 50 Ω |
| Band options | Second band selectable at order: BDS-B3 (1268.52 MHz), GPS-L2 (1227.60 MHz) or GPS-L5 (1176.45 MHz) |
