Anti-jamming CRPA antennas that hold the lock.
GNSS anti-jamming and anti-spoofing antennas for drones, eVTOL and unmanned ground vehicles.
- Up to 15 jammerssuppressed
- Multi-countryfielded by defense & industrial users
- Asian supply chainflexible sourcing, responsive delivery
Not sure which model? Three things decide it: how much weight the platform can carry, how many jammers you expect, and whether you need spoofing protection. Click a row to jump to its card.
| Model | Best for | Elements | Max jammers | Weight | Anti-spoofing |
|---|---|---|---|---|---|
| TX-S65-4CH-SNBTX-S65 | Small drones where every gram counts | 4 | 3 | ≤130 g | — |
| TX-009Pro-8CH-BD-WG-DTTX-009Pro BD | Fleets that need a second band matched to their receiver | 4 | 3 | ≤500 g | — |
| TX-009Pro-8CH-G1-WG-DTTX-009Pro G1 | Mixed fleets on GPS, BeiDou and GLONASS at once | 4 | 3 | ≤400 g | — |
| TX2501-AJS-4CH-DPATX2501 | Light platforms that also need spoofing protection | 4 | 3 | ≤520 g | ✓ |
| TX2504-3T7A21C-WG-DTTX2504 | Long flights through heavier interference | 7 | 6 | ≤1200 g | — |
| TX-8AT-FULL-KGR-34VTX-8AT | GPS and GLONASS platforms in busy airspace | 8 | 7 | ≤720 g | — |
| TX2511-16A-SNBTX2511 | Fixed sites and heavy platforms under severe jamming | 16 | 15 | ≤1250 g | — |
| TX2512-AJS-16CH-DPATX2512 | The worst interference, spoofing protection included | 16 | 15 | ≤2600 g | ✓ |
Independent Asian supply chain
Flexible sourcing. Responsive delivery. Scalable supply. Built around an independent Asian supply chain, infoX offers flexible sourcing and configuration options for global programs. From first inquiry to fleet-scale deployment, we work with customers to match technical requirements, delivery schedules and budget constraints.
Fielded in multiple countries
infoX terminals are in service with defense and industrial users in several countries. Customer names stay confidential.
Tested against live jammers
We test in the field against live jammers, from a 10 W handheld unit a few metres away to jammers 30–50 m from a drone in flight. The videos are on the model pages.
In stock, quoted in one business day
Common configurations ship from stock. Send the platform, the weight and power budget and the interference you expect, and you get one model, a price and a lead time within one business day.
One supplier, small UAV to ground station

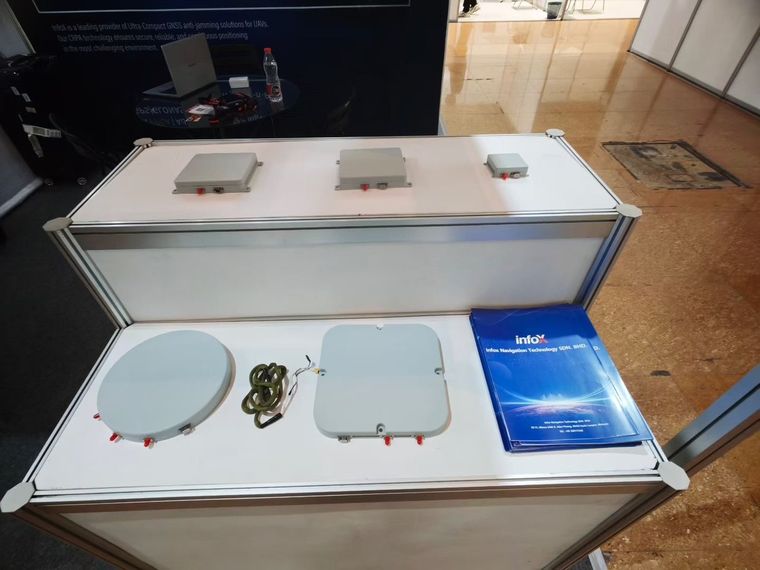

Eight models from 65 mm and 130 g up to Ø370 mm, 4 to 16 elements, across BeiDou, GPS, Galileo and GLONASS; two add anti-spoofing.
Integration support
If a terminal is not meeting its specification, we work through it with you: installation, environment, or the unit itself.
A null, pointed at the noise
Interference is not beaten with power — it is beaten with geometry. The array compares the phase of the signal arriving at each element and combines them so that gain collapses toward the jammer while gain toward the satellites is preserved.
- An N-element array forms up to N−1 independent nulls
- Azimuth 0—360°, elevation −90° to +90°
- Wideband, pulsed, swept and mixed interference
- Antenna, nulling module and receiver in one housing
A false signal that goes nowhere
Spoofing is the more dangerous failure: the receiver keeps working and confidently reports the wrong position. The DPA models identify counterfeit constellations and suppress them before they ever reach the navigation solution.
- Residual spoofing signal held to ≤20 dB C/N₀ at output
- Runs simultaneously with jamming suppression
- Available in 4-element and 16-element variants
- Substantially raises PNT information security
See it work: drag a jammer and watch where the nulls form and which satellites stay locked.
- Nulls / capacity
- 1 / 3
- Satellites held
- 7 / 7
Small and medium drones (UAV)
The 65 mm, 130 g terminal for platforms where every gram is contested.
Air taxi and eVTOL
Navigation over dense urban terrain, where reflections and interference are the norm.
Logistics delivery
BVLOS routes that need continuous lock from origin to doorstep.
Unmanned ground vehicles (UGV)
Operation across complex terrain and electronic interference environments.
Survey and mapping
High-precision positioning that stays honest under deliberate interference.
Critical infrastructure
Reference stations and timing, where losing the signal is not an option.
Tell us the platform, we will size the array.
Payload budget, available power, required constellations and the interference environment you expect determine which of the eight terminals fits. We respond within one business day.
